U.S. Air National Guard

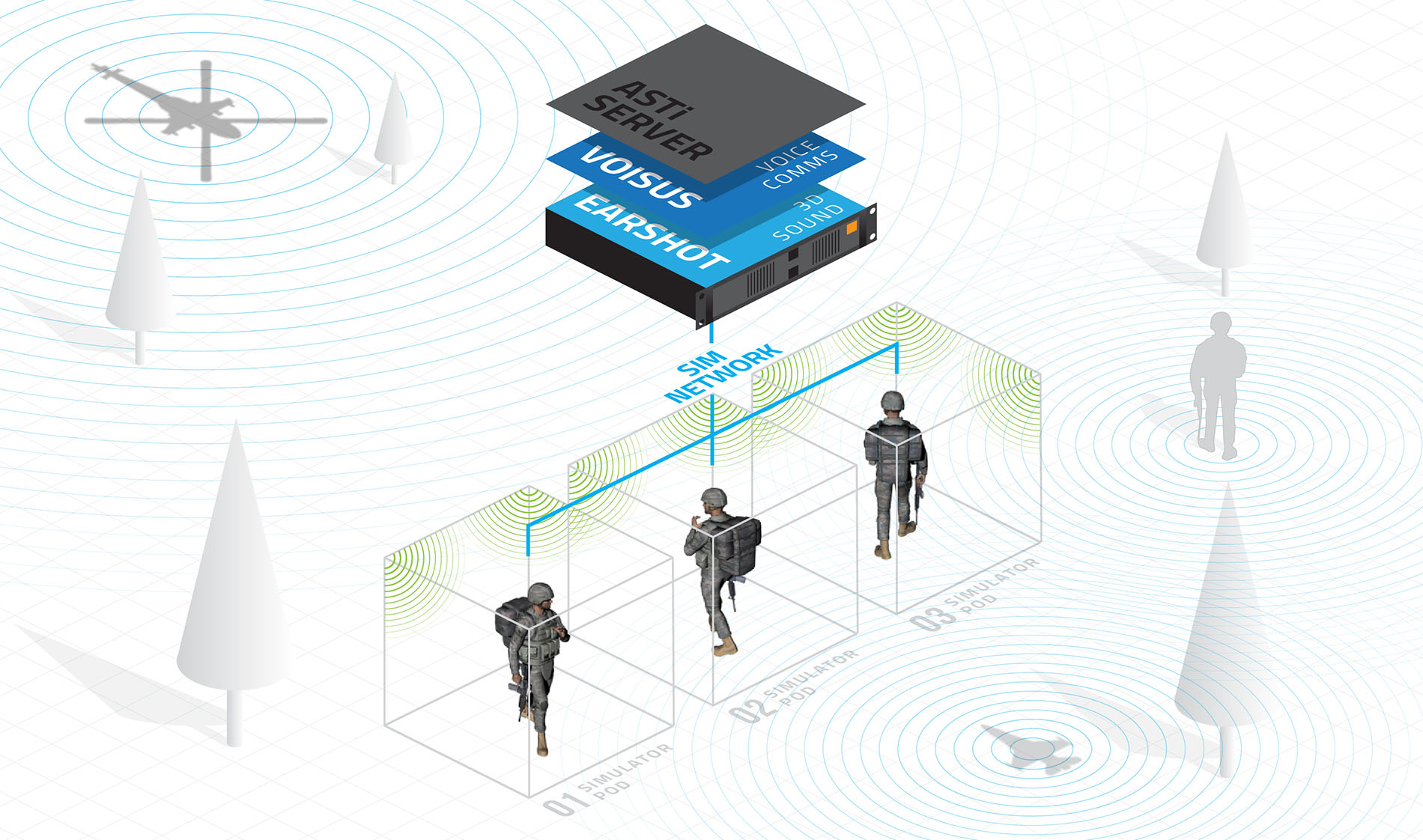

ASTi is participating in a combat operations program evaluating synthetic and virtualized technologies for military security forces. This pilot program showcases a distributed virtual training environment that connects infantrymen in separate simulator pods to a shared, virtual space. Trainees wear sensored suits that track location and movement within an immersive, 360-degree enclosure. The simulation can operate in single-player or multiplayer mode.
The challenge requirements are listed in blue; ASTi's applicable components are
Distribute a voice communication and battlefield sound environment to a network of simulators, creating a shared, audible environment.
Most game or simulator sound systems don’t provide sound localization, 3D modeling that allows players to accurately perceive a sound’s virtual location. Players lacking this fundamental component are severely handicapped. Imagine soldiers who can hear battle sounds (e.g., grenade detonations, weapons fire, commands from teammates) but can’t determine their locations. This critical gap stunts soldiers’ reactions to enemy attacks—both in training and in actual combat.
ASTi’s Earshot fills the void, adding an element of realism that standard game voices just don’t have. This sound-field reconstruction product generates an acoustic soundscape with physics-based accuracy and proximity-based sound effects. It augments the visual environment with three-dimensional battle sounds, such as the roar of a passing aircraft, the thunderclap of grenades, and the audible crack of gunfire. Soldiers rely on these effects to identify enemy threats and fire their weapons in response.
Directionality and distance-attenuating effects behave just like they do in the real world. Earshot dynamically tracks the virtual locations and orientations of simulated entities, including ground vehicles, aircraft, weapons fire, and detonations. To create realistic timing, it calculates the distance between the listener and the sound, inducing a delay. Voices and sounds become louder or quieter depending on the listener’s position, so avatars must be in hearing range to communicate. Earshot also models a sounds’ motion and speed as it approaches or withdraws from players, allowing them to estimate distance.
Distribute trainees’ voice communications without restricting their movements.
To distribute voice communications among players in multiple simulators, ASTi integrated its networked audio interface modules with wireless area microphones and base stations. We also used high-fidelity amplifiers and speakers to relay battle sounds via Ethernet connections. Voisus clients connect to virtual avatars in the training scenario, communicating without simulated radios or press-to-talk (PTT) devices.
The resulting experience is both functional and realistic. Trainees in separate simulators can communicate by speaking into wireless microphones, as if they are occupying the same space. Earshot gives them the freedom to move unhindered through the simulation without getting tangled in wires or cables.
Accommodate the program’s aggressive schedule, limit costs, and reduced development, integration, and test time.
To meet the Air National Guard’s tight budget and schedule, ASTi based the audio comms subsystem on its Voisus product line. Voisus is a mature commercial-off-the-shelf (COTS) product that ships from stock and deploys right out of the box. Interoperable with DoD simulation and networking standards, Voisus’s software and hardware interfaces work with most consumer and military audio devices.
Integrating Earshot into the simulators was easy. Customers just had to connect Earshot to a network, set up the Voisus web interface, and acoustically optimize the simulators’ speaker array. The configuration only required one custom task: designing simulator audio cables. Earshot’s ready-to-go operation was critical to the program’s success, eliminating development time and reducing integration time and costs. Most importantly, it decreased the customer’s perceived risk of implementing simulator sound systems.
Design a flexible solution that can adapt to future deployment challenges.
These days, the training industry is trending towards mixed-media solutions and game-oriented, virtual reality (VR), mixed-reality, and augmented-reality environments. Many applications are using technology to bypass high-dollar training items, and the security forces pilot program is no exception. As a prototype for future capabilities, they hope to transition their configuration to a software-only virtual environment. The program also plans to add speech recognition and radio comms to the simulation’s virtual avatars.
ASTi is here to support this new paradigm. Our products scale to meet a variety of training needs, from low-cost desktop trainers to virtual cloud environments. ASTi’s network architecture can support multiple training devices within a single system. This smaller hardware footprint reduces costs, increases training productivity, and offers greater flexibility.
Earshot simulates an immersive, 3D soundscape, accurately modeling the battlefield sound environment as well as acoustic, through-the-air voice communications. Earshot works out of the box: all you need is a network connection and minimal configuration to map sounds to entities.
Once enabled, Earshot detects the virtual world location of simulation entity types (i.e., ground vehicles, rotary and fixed wing aircraft, weapons fire, detonations) and generates associated sounds that automatically track the moving locations of the entities. Earshot also realistically models the propagation of players’ voices traveling through virtual air.
Clients connect networked audio and control interfaces from operator comms stations, speakers, and live radios to the Voisus server for digital signal processing and networked distribution. Clients also feature simulated tactical radios that replicate the physics-based propagation effects of over-the-air ranging, as well as modulation waveforms and crypto and frequency-hopping modes.
